GATE OPENER WITH ARTICULATED ARM ZENIT-S

The ZENIT-S is a durable swing gate opener with an articulated arm, suitable for various of installation situations. Four different articulated arm versions are available. The accurately adjusted recirculating ballscrew ensures a smooth gate movement. Internal stops permit the use without external stops for GATE OPEN. For gates with up to 3,000mm length per wing, even for GATE CLOSED, external stops are not required.

Contact us
Find out more about ELKA products and corresponding accessory components. Our competent team will be happy to assist you with the planning and implementation of projects.

We look forward to your inquiry.

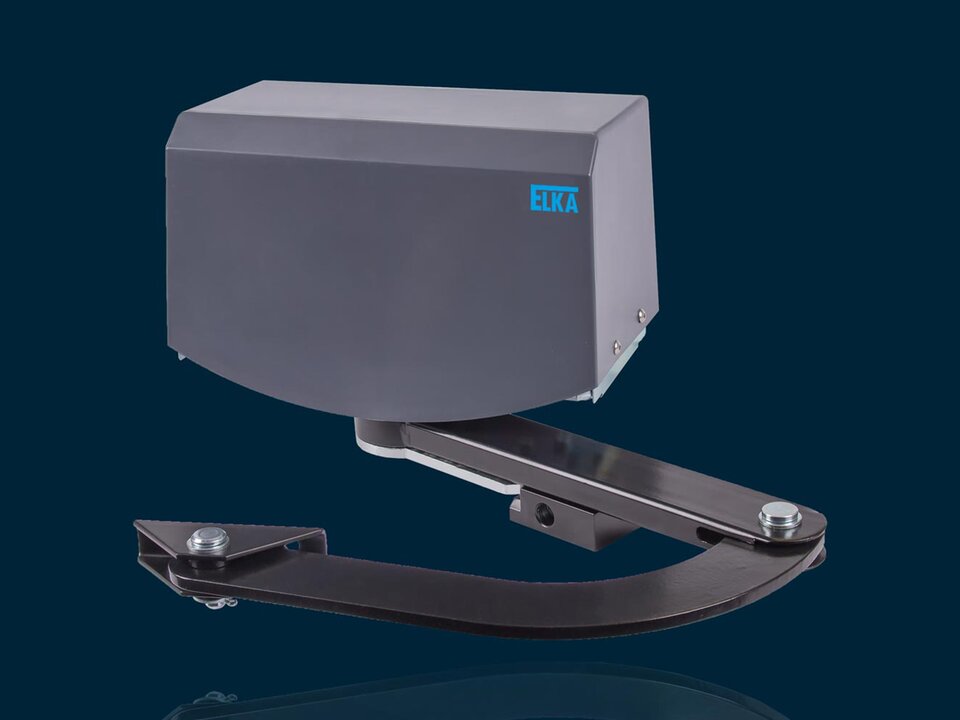

Material

– Stable substructure made of galvanized steel

– Housing made of impact-resistant ABS

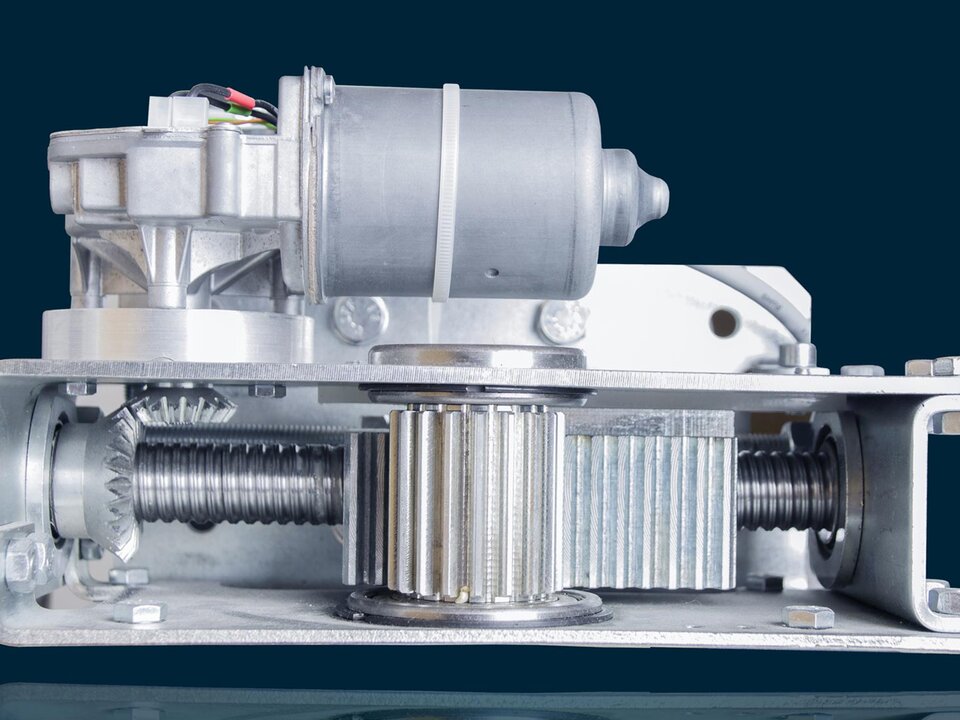

Stable substructure

– The accurately adjusted recirculating ballscrew ensures a smooth gate movement

– For gate wings up to 4,500mm length and 450kg weight

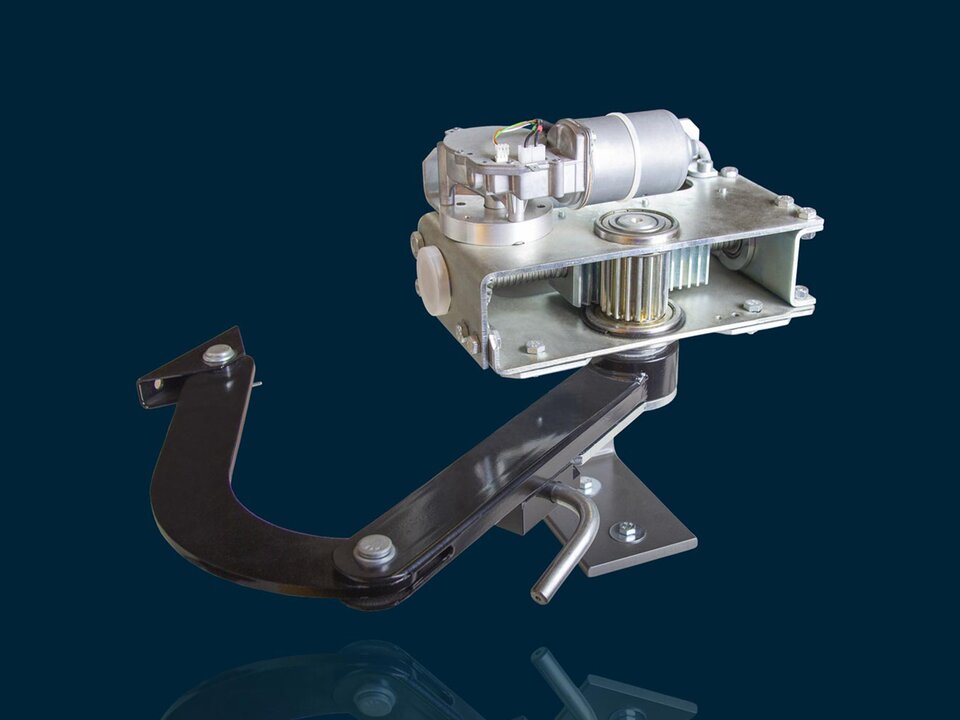

Innovative

– External stops are not required

– Three different articulated arm versions

Controller MO36

Simple operation thanks to slim menu navigation via 2x7-segment display and quick overview of incoming signals via LEDs at the inputs.

More information

Required accessories

An electromagnetic or motor lock is required from 3,000mm gate wing length upwards.

VARIANTS

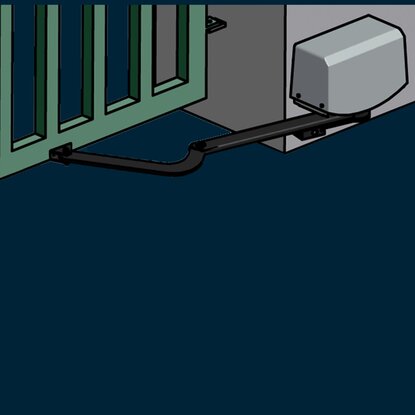

Standard

Opening angle up to 120°

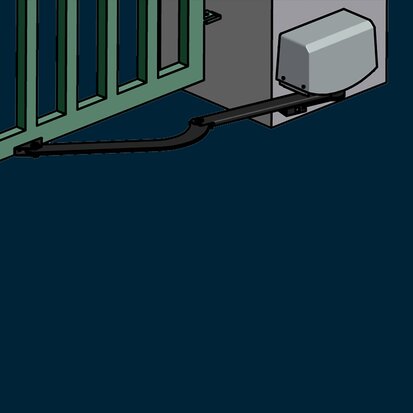

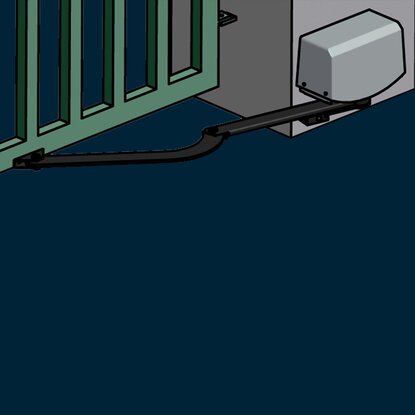

Long articulated arm

Opening angle up to 120°, for large distances between gate opener and gate wing

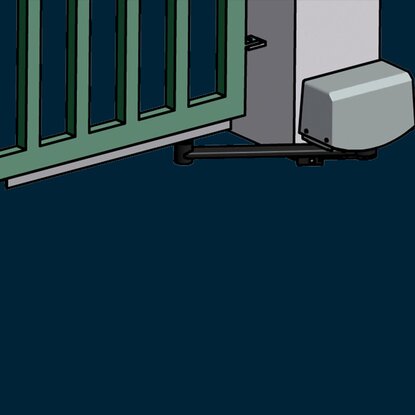

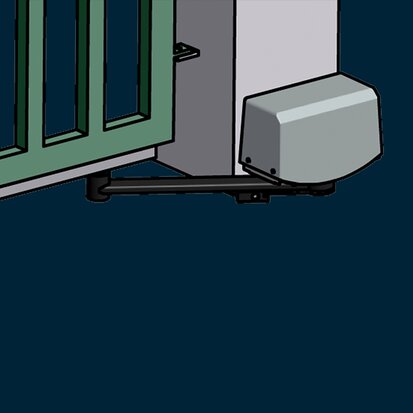

Straight arm with U-rail

Opening angle up to 90°, for installations without room for the articulated arm

Technical data

Type	Max. Wing width (mm)	Running time (s)	Max. Opening angle (°)
ZENIT-S 300/302	3000	12	120
ZENIT-S 450/452	4500	12	120

ZENIT

803000800-SET
Swing gate opener ZENIT-S 300

Description: Swing gate opener ZENIT-S 300 24V, for gates with 1 wing up to 3,000mm length and 300kg weight of gate (not wind resisting), without controller

Configure

GATE OPENER WITH ARTICULATED ARM ZENIT-S

Contact us
Find out more about ELKA products and corresponding accessory components. Our competent team will be happy to assist you with the planning and implementation of projects.

We look forward to your inquiry.

Material

– Stable substructure made of galvanized steel

– Housing made of impact-resistant ABS

Stable substructure

– The accurately adjusted recirculating ballscrew ensures a smooth gate movement

– For gate wings up to 4,500mm length and 450kg weight

Innovative

– External stops are not required

– Three different articulated arm versions

Controller MO36

Simple operation thanks to slim menu navigation via 2x7-segment display and quick overview of incoming signals via LEDs at the inputs.

More information

Required accessories

An electromagnetic or motor lock is required from 3,000mm gate wing length upwards.

VARIANTS

Standard

Opening angle up to 120°

Long articulated arm

Opening angle up to 120°, for large distances between gate opener and gate wing

Straight arm with U-rail

Opening angle up to 90°, for installations without room for the articulated arm

Technical data

Type	Max. Wing width (mm)	Running time (s)	Max. Opening angle (°)
ZENIT-S 300/302	3000	12	120
ZENIT-S 450/452	4500	12	120

Recommended components

Category: Motor controls
Product name: Controller MO 36

Category: 434 MHz
Product name: 1-channel transmitter SKX1LC

Category: 868 MHz
Product name: Receiver module EFX1OF for SFX remote control, 868MHz

Optional components

Category: Accessories
Product name: Long articulated arm instead of standard arm for ZENIT-S

Category: Accessories
Product name: Straight arm with u-rail instead of standard arm, ZENIT-S

Category: Accessories
Product name: Module for the connection of traffic lights to the MO 36

Spare parts

Downloads

Brochures

Swing gate openers Brochure.pdf

PDF

7.07 MB
