Swing gate opener KOMET 600

LINEAR-RACK GATE OPENER KOMET

The KOMET is a robust gate opener with linear-rack technology in an elegant housing made of anodized aluminium and impact-resistant ABS. The linear-rack and the toothed wheels made of galvanized steel ensure a reliable and silent operation. The emergency release from top and bottom is another feature.

The KOMET is suitable for gate wings up to 6,000mm and 500kg and a variety of installation situations. For example, the swivelling connection ensures a smooth operation on rising terrain (up to max. 5°).

Contact us
Find out more about ELKA products and corresponding accessory components. Our competent team will be happy to assist you with the planning and implementation of projects.

We look forward to your inquiry.

Material

The housing is made of insulated aluminium and impact-resistant ABS. Racks and gears are made of galvanized steel.

Stable substructure

Suitable for gate wings up to 6,000mm in length and 500kg in weight. The stable construction can withstand vertical pressure forces of up to 150kg.

Innovative

– Linear-rack technology

– Reliable and silent operation

– Emergency release from top and bottom

Controller MO36

Simple operation thanks to slim menu navigation via 2x7-segment display and quick overview of incoming signals via LEDs at the inputs.

More information

Required accessories

An electromagnetic or motor lock is required from KOMET 400 upwards.

Technical data

Type	Max. Wing width (mm)	Running time (s)	Max. Opening angle (°)
KOMET 200*	2000	12	120
KOMET 280**	2800	13	120
KOMET 400***	4000	14	120
KOMET 600***	6000	21	120

KOMET

803000500-SET
Swing gate opener KOMET 600

Description: Swing gate opener KOMET 600, 24V for gates with one wing up to 6,000mm length and 500kg weight, with low wind resistance, stroke 500mm, without blocking without controller

Configure

LINEAR-RACK GATE OPENER KOMET

The KOMET is a robust gate opener with linear-rack technology in an elegant housing made of anodized aluminium and impact-resistant ABS. The linear-rack and the toothed wheels made of galvanized steel ensure a reliable and silent operation. The emergency release from top and bottom is another feature.

The KOMET is suitable for gate wings up to 6,000mm and 500kg and a variety of installation situations. For example, the swivelling connection ensures a smooth operation on rising terrain (up to max. 5°).

Contact us
Find out more about ELKA products and corresponding accessory components. Our competent team will be happy to assist you with the planning and implementation of projects.

We look forward to your inquiry.

Material

The housing is made of insulated aluminium and impact-resistant ABS. Racks and gears are made of galvanized steel.

Stable substructure

Suitable for gate wings up to 6,000mm in length and 500kg in weight. The stable construction can withstand vertical pressure forces of up to 150kg.

Innovative

– Linear-rack technology

– Reliable and silent operation

– Emergency release from top and bottom

Controller MO36

Simple operation thanks to slim menu navigation via 2x7-segment display and quick overview of incoming signals via LEDs at the inputs.

More information

Required accessories

An electromagnetic or motor lock is required from KOMET 400 upwards.

Technical data

Type	Max. Wing width (mm)	Running time (s)	Max. Opening angle (°)
KOMET 200*	2000	12	120
KOMET 280**	2800	13	120
KOMET 400***	4000	14	120
KOMET 600***	6000	21	120

Recommended components

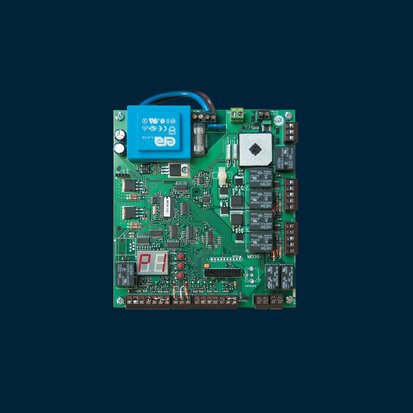

Controller MO 36

Category: Motor controls
Product name: Controller MO 36

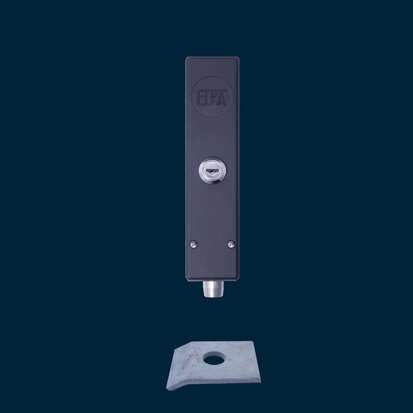

Electromagnetic bolt E 202 for ELKA swing gate openers

Category: Electromagnetic locks and motor lock
Product name: Electromagnetic bolt E 202 for ELKA swing gate openers

For ELKA swing gate openers
Locks either down or sideways

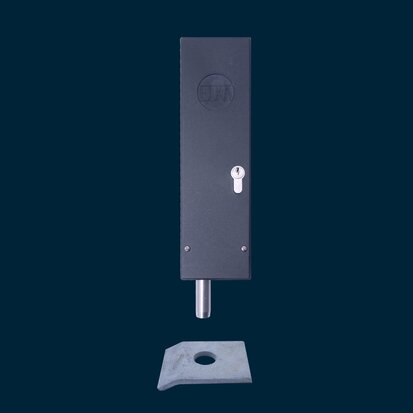

Electromagnetic bolt E 205, 50mm stroke

Category: Electromagnetic locks and motor lock
Product name: Electromagnetic bolt E 205, 50mm stroke

For ELKA swing gate openers
Locks either down or sideways

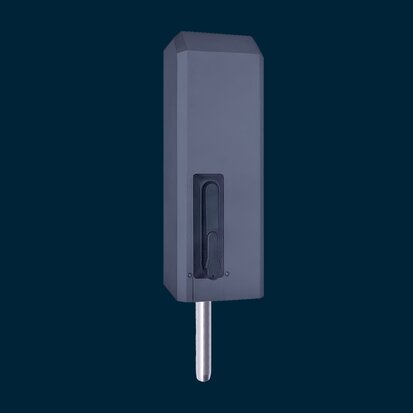

Motor-lock M 315 incl. controller MO 90

Category: Electromagnetic locks and motor lock
Product name: Motor-lock M 315 incl. controller MO 90

1-channel transmitter SKX1LC

Category: 434 MHz
Product name: 1-channel transmitter SKX1LC

Receiver module EKX1OF for SKX remote control

Category: 434 MHz
Product name: Receiver module EKX1OF for SKX remote control

Optional components

Electromagnetic bolt E 202 for ELKA swing gate openers

Category: Electromagnetic locks and motor lock
Product name: Electromagnetic bolt E 202 for ELKA swing gate openers

For ELKA swing gate openers
Locks either down or sideways

Electromagnetic bolt E 205, 50mm stroke

Category: Electromagnetic locks and motor lock
Product name: Electromagnetic bolt E 205, 50mm stroke

For ELKA swing gate openers
Locks either down or sideways

Flashing light, LED yellow, 230V oder 24V

Category: Luminaires
Product name: Flashing light, LED yellow, 230V oder 24V

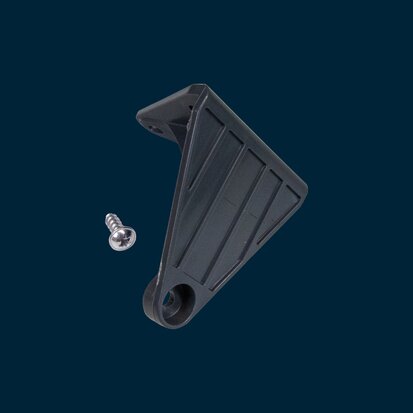

Mounting bracket for round flashing light FX40

Category: Luminaires
Product name: Mounting bracket for round flashing light FX40

Photoelectric barrier L-900

Category: Photoelectric barriers
Product name: Photoelectric barrier L-900

18m range
Surface mounting
12-24V dc/ac

Custom colour for KOMET arm and hood

Category: Special paint
Product name: Custom colour for KOMET arm and hood

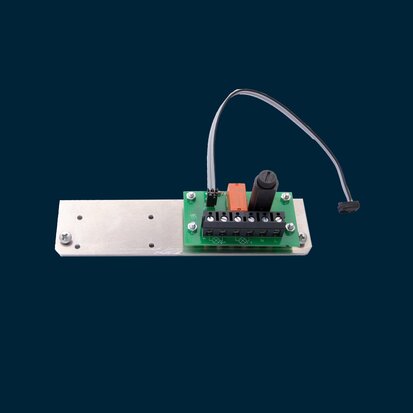

Module for the connection of traffic lights to the MO 36

Category: Accessories
Product name: Module for the connection of traffic lights to the MO 36
