EST 230V
ELKA offers a selection of slide gate openers in a compact or convenient housing for gates up to 16,000mm and 2,000kg. All gate openers are height adjustable up to 30mm.
Â
The compact housing is made of robust steel. The components are easily accessible by loosening two screws on the sides of the gate opener. After the screws are loosened, the cover can be easily removed. The convenient housing is made of aluminium and offers plenty of space for additional installations. The components are easily accessible via the service door. Unlocking is done by using a hexagon key, which releases the clamping mechanism.
For serial gates designed in accordance with the EU Norms, ELKA offers support during the certification process.
Â
Contact us
Find out more about ELKA products and corresponding accessory components. Our competent team will be happy to assist you with the planning and implementation of projects.
Â
We look forward to your inquiry.
Â

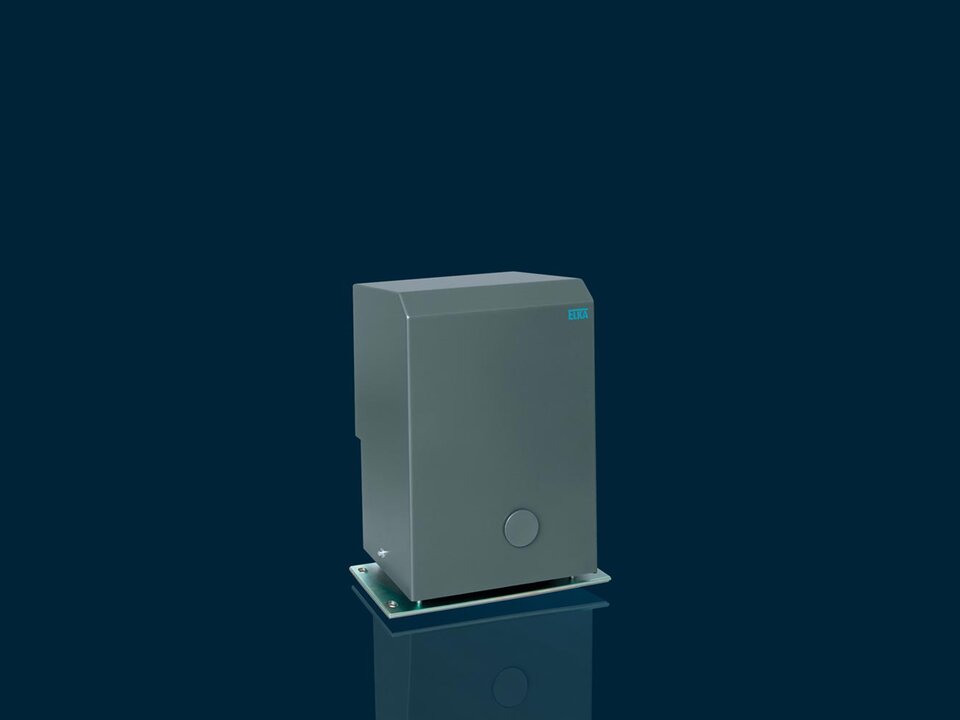

Compact housing
The housings are made of steel and are galvanized and powder coated afterwards.

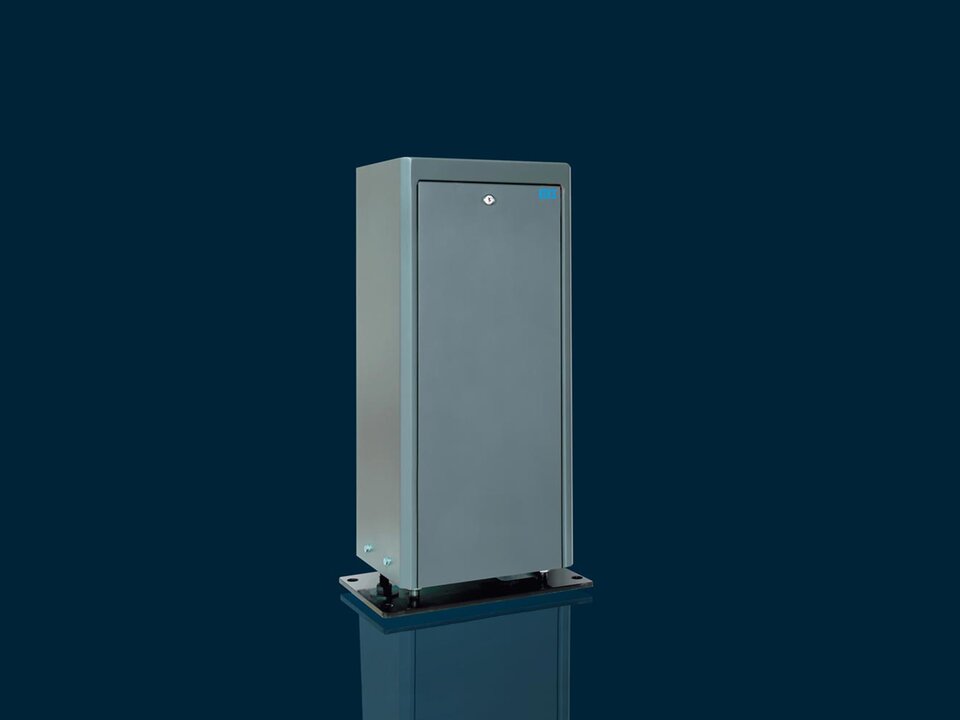

Convenient housing
The housings are made of powder-coated aluminium and offer plenty of space for additional installations. Including maintenance power outlet and completely pre-wired terminal row and socket for a 1-channel loop detector.

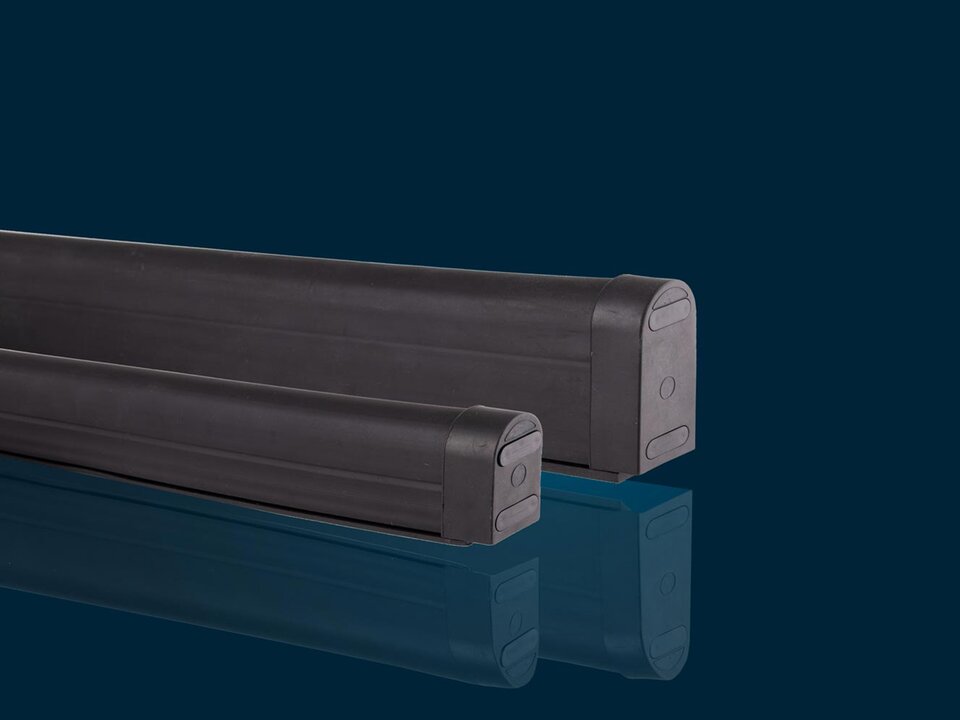

Safety
Immediate stop via electronic brake and reversing for a short distance take place when a safety device is activated. For compliance with the safety regulations, ELKA supplies suitable safety contact profiles and photoelectric barriers.
Certification
For serial gates designed in accordance with the EU Norms, ELKA offers support during the certification process. The perfect opportunity for gate manufacturers to offer a certified system.
Variable

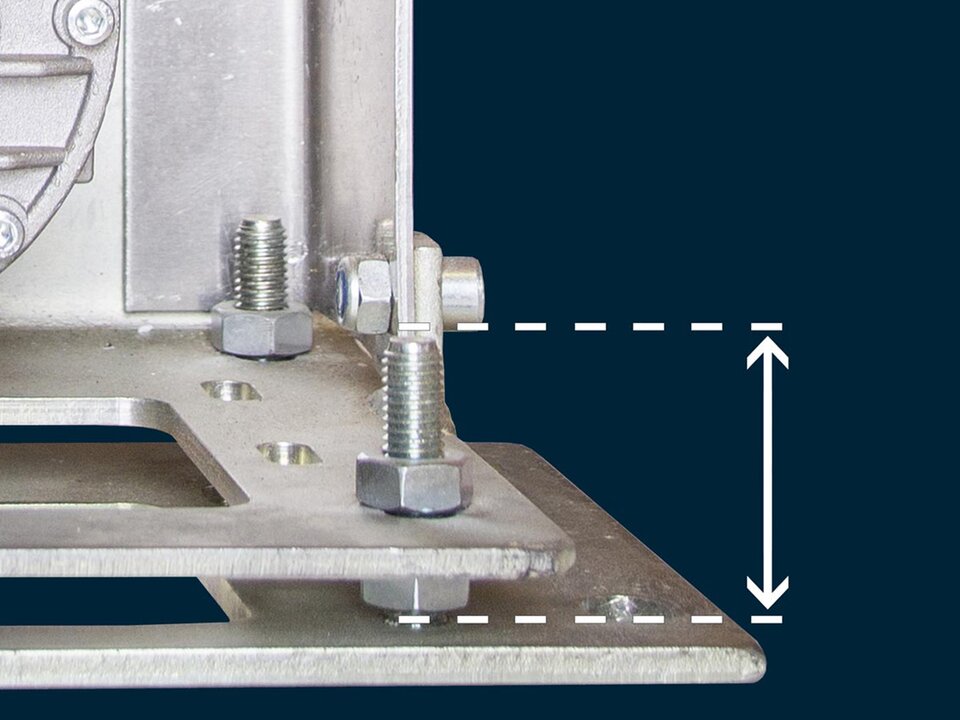

All gate openers of this series are height adjustable up to 30mm. The housings optionally are available in every RAL custom colour.

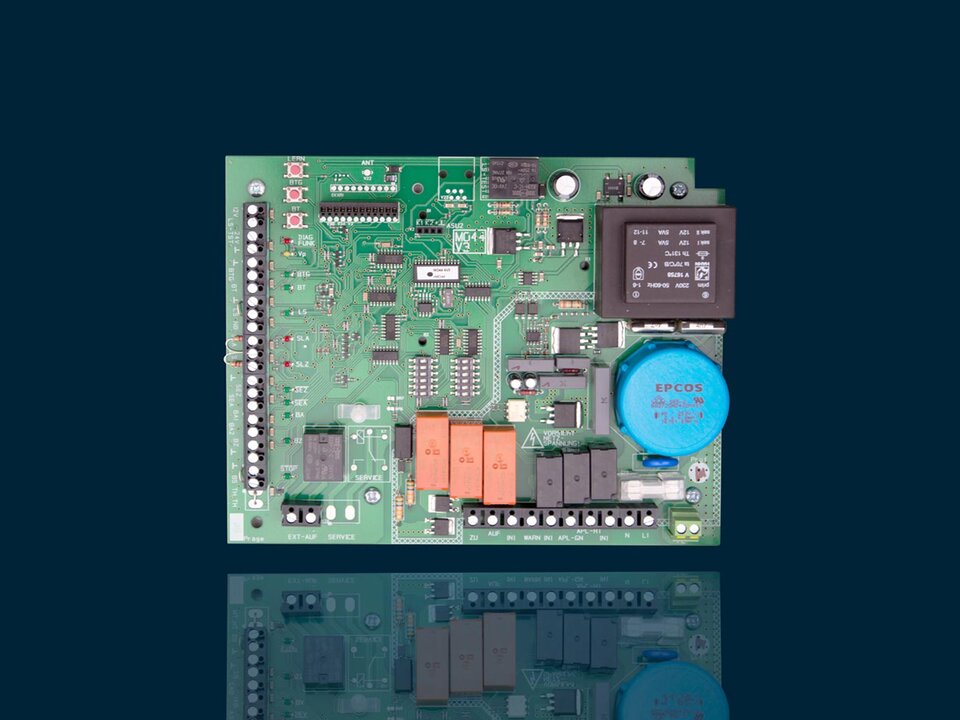

Controller MO 44-2
Simple operation thanks to easy menu navigation, one button input with serial switching or three button input, with safety contact profile detection for OPEN and CLOSE separately (8,2kOhm), partial opening learnable (via radio remote control or switch)

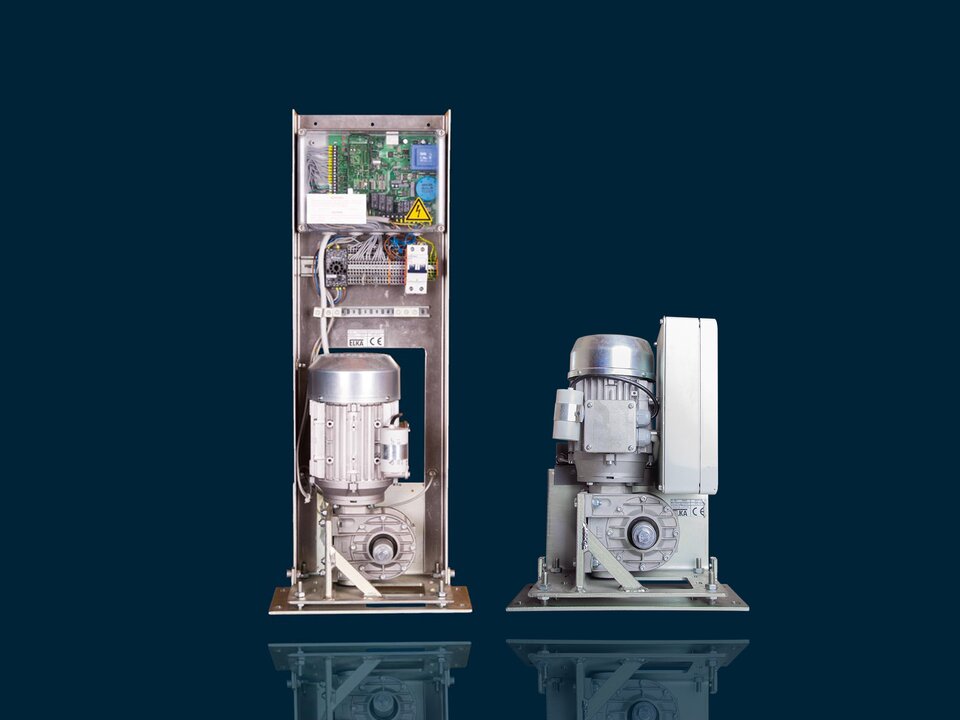

More informationDrive assembly
For gateposts on site. With galvanized steel U-profile, as well as prewired terminal row and socket for 1-channel loop detector.
TOOTHED WHEELS
Module 4 (Standard)
Steel, Ø 80mm, 18 teeth

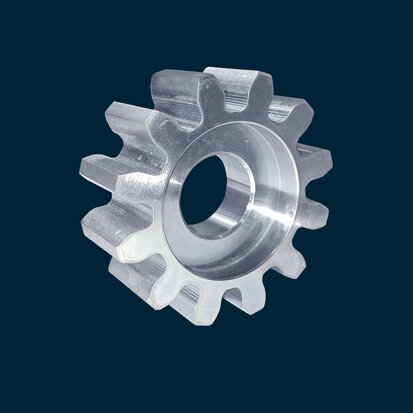

Module 6 (optional)
Galvanized steel, Ø 80mm, 12 teeth
TOOTHED RACKS

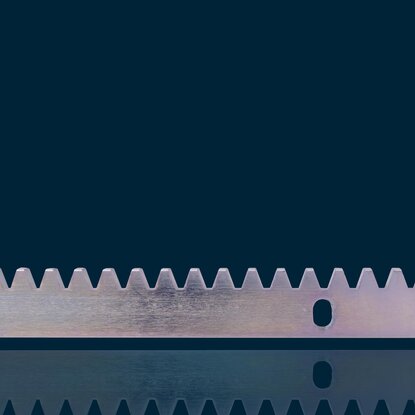

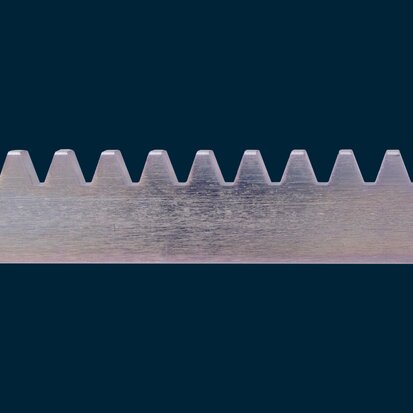

Module 4, 30x12mm
Galvanized, height adjustable, to be screwed on the gate
Module 6, 30x30mm
Galvanized, to be welded on the gate
Technical data
Type | Dimensions W/D/H (mm) | Max. Gate weight (kg) | Max. Gate length (mm) | Supply- / Operation Voltage from (in V) | Running speed (m/min.) |
---|---|---|---|---|---|
EST 1204 | 335 x 230 x 410 | 1200 | 12000 | 230V (50Hz) / 230V | 10.8 |
EST 2004 | 335 x 230 x 410 | 2000 | 16000 | 230V (50Hz) / 230V | 10.8 |
EST 1204K | 372 x 270 x 800 | 1200 | 12000 | 230V (50Hz) / 230V | 10.8 |
EST 2004K | 372 x 270 x 800 | 2000 | 16000 | 230V (50Hz) / 230V | 10.8 |
Slide gate openers 230V
802003100-SET

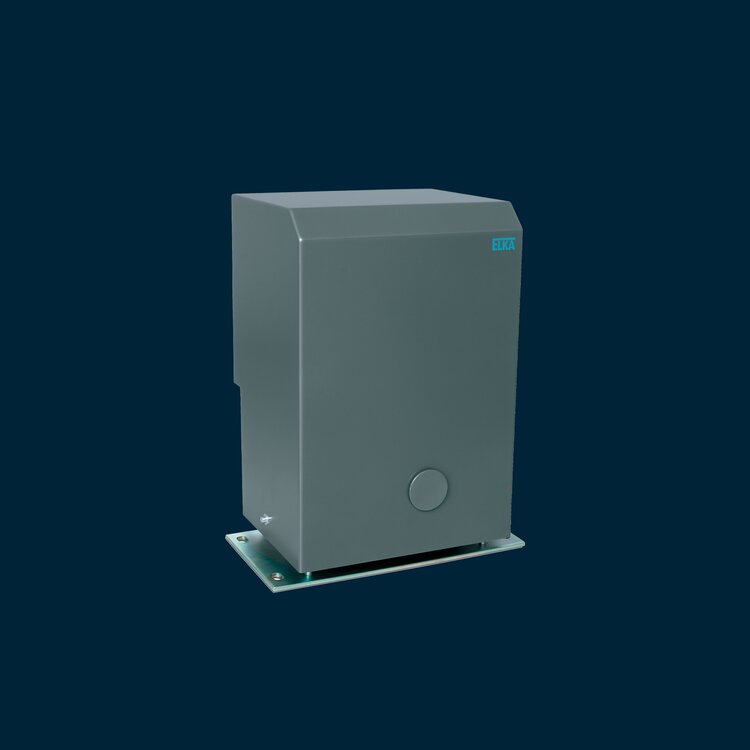

EST 1204 slide gate opener with MO 44 controller
- Description
- EST 1204 slide gate opener, with MO 44 controller, zinc coated toothed wheel,module 4
