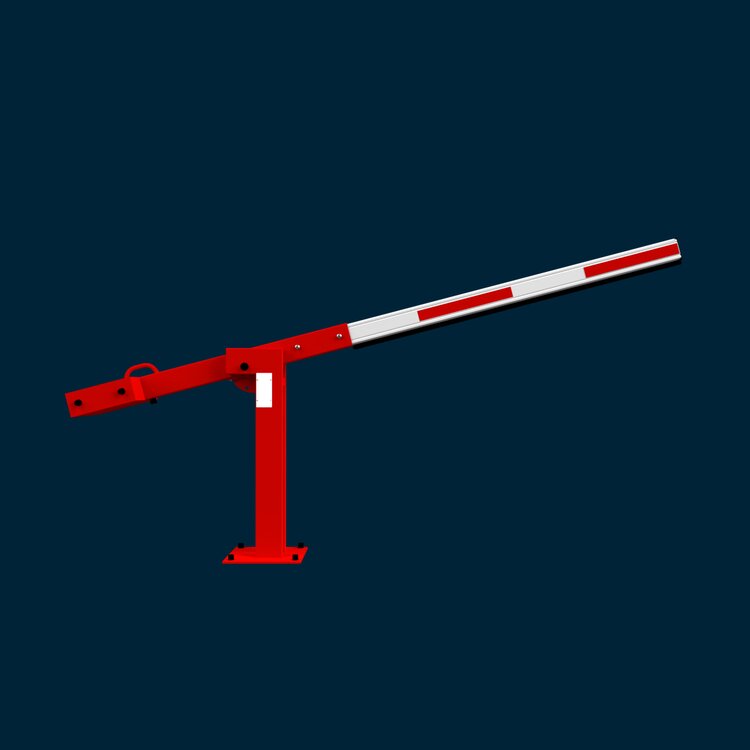

EH 25L RAL3002 Manual barrier

EH 25L RAL3002 Manual barrier

MANUAL BARRIERS WITH COUNTERWEIGHTS

ELKA manual barriers are designed for a barrier width of up to 7,500 mm. The barrier stand is made of galvanized steel and is supplied in RAL 3002 (red) as standard. The counterweights ensure optimum weight compensation.

Variants
ELKA offers a selection of 11 barrier types with different boom lengths and matching accessories, such as locking, stabilization rope or swinging and fixed supports.

Contact us

Find out more about ELKA products and corresponding accessory components. Our competent team will be happy to assist you with the planning and implementation of projects.

Benefit from over 40 years of experience - approx. 100,000 barriers installed in over 80 countries worldwide. All products are manufactured in Germany and are subject to strict quality controls.

We look forward to your inquiry.

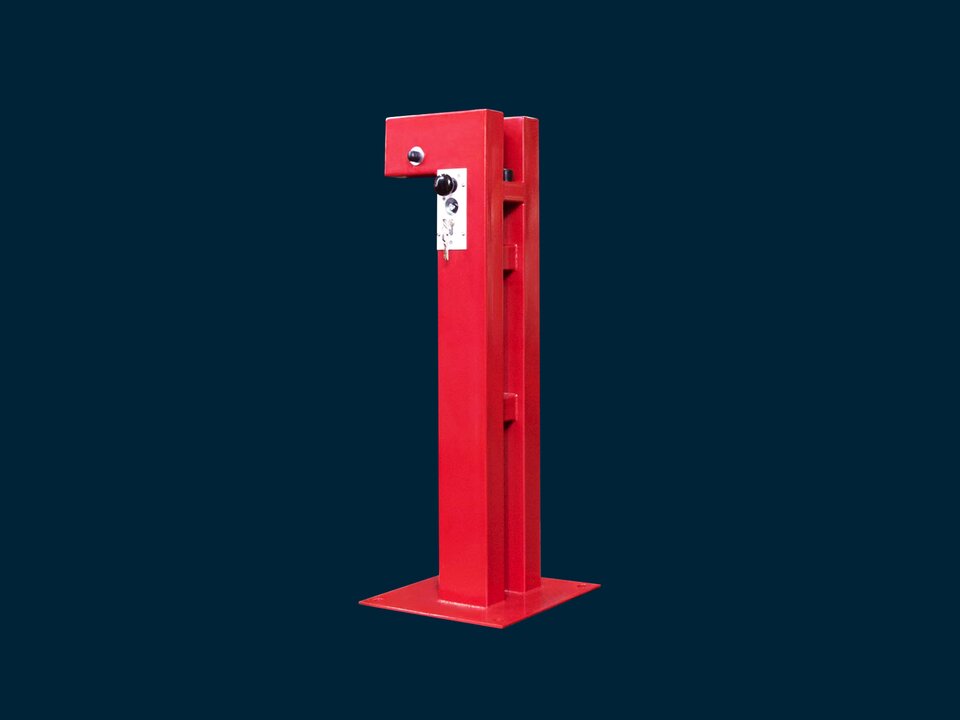

Barrier stand

- made of galvanized steel

- Standard RAL 3002 (red)

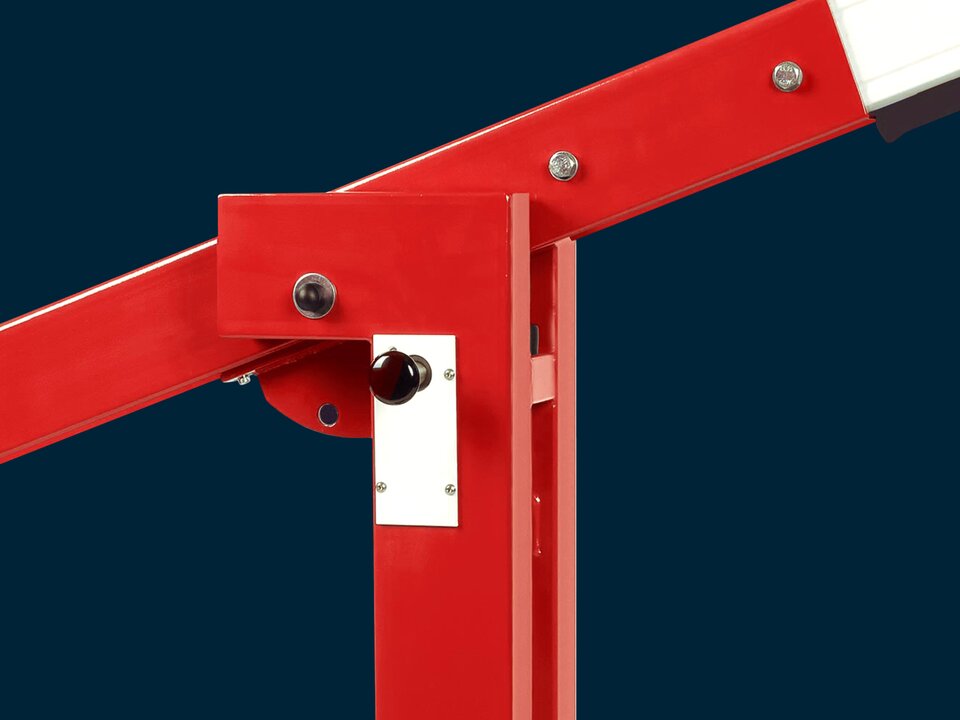

Default locking

- via catch-bolt

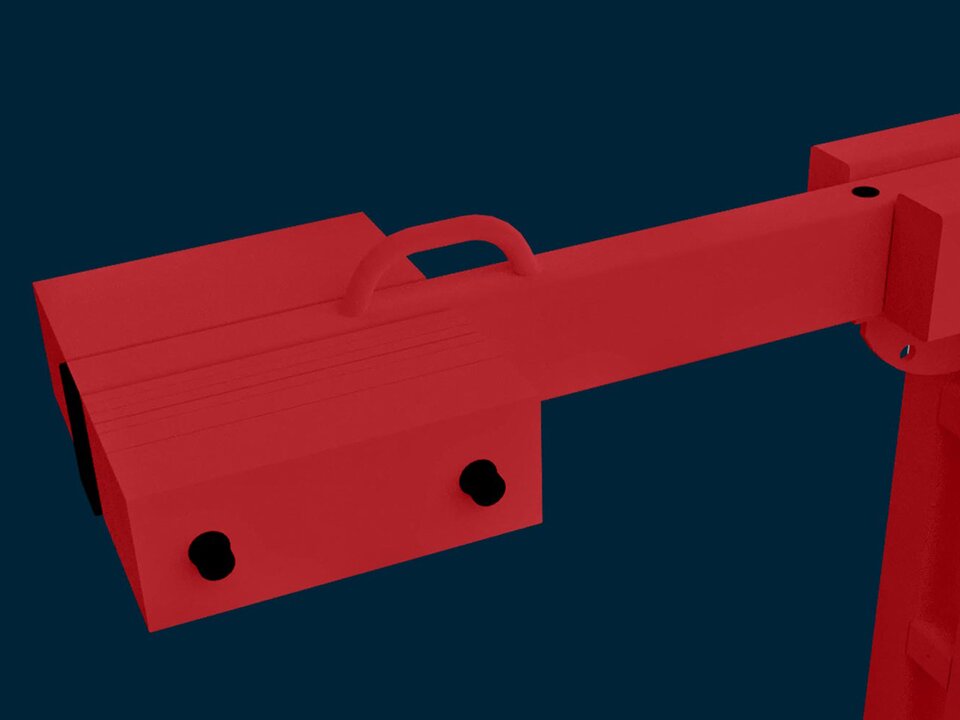

Counterweights

- for optimum weight compensation

- for easy operation

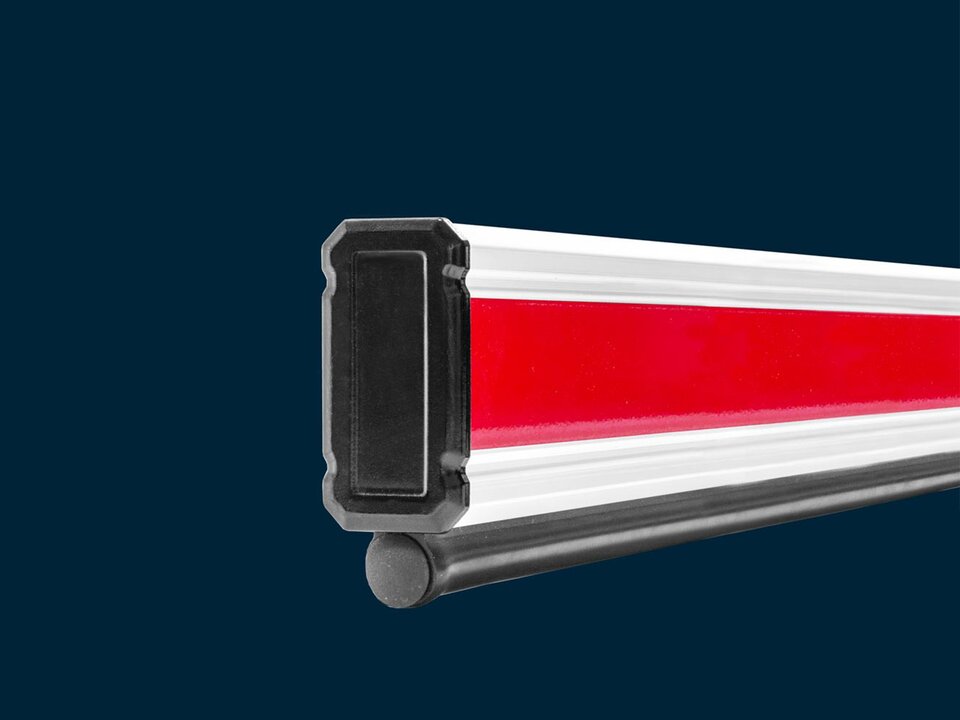

Barrier boom

- made of powder-coated aluminum

- Standard RAL 9010 (white)

- with red, reflective signal stripes

- Rubber-padded lower edge of boom

ACCESSORIES

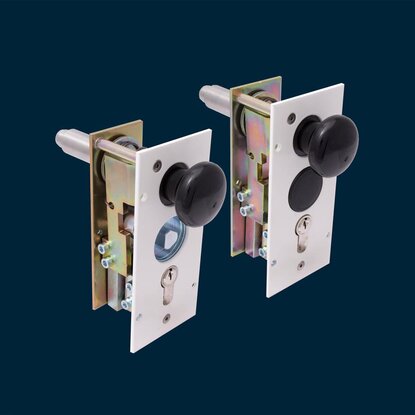

Locking device on the barrier stand

Locking device on the barrier stand

Locking with profile cylinder lock or fire emergency release, with or without forced closure

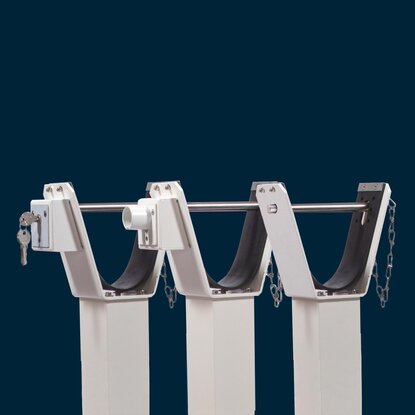

Locking device at the fixed support

Locking device at the fixed support

Profile cylinder lock or fire emergency release incl. stainless steel bolt, on-site padlock

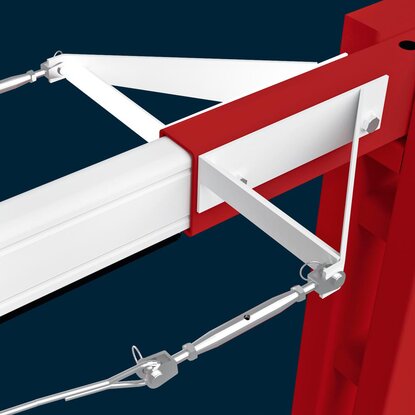

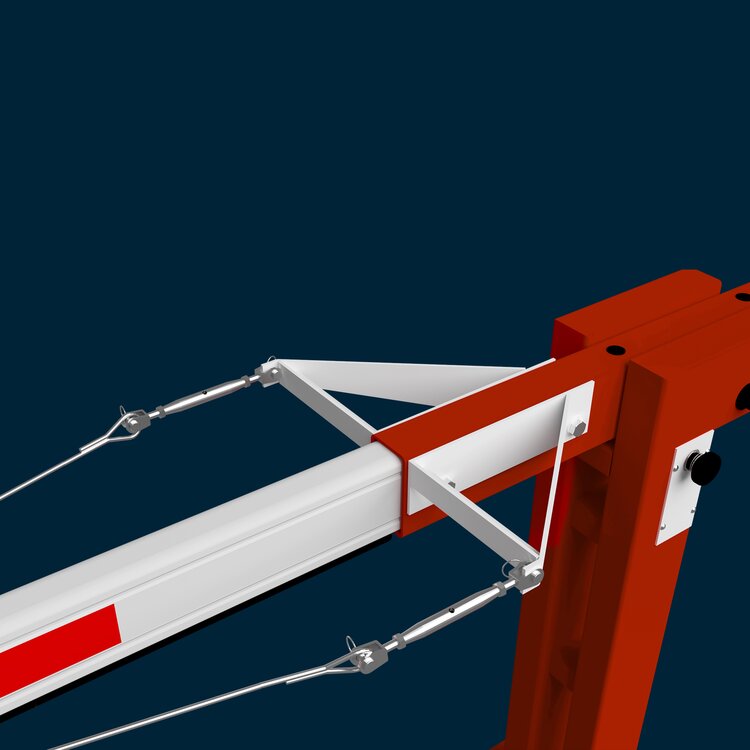

Stabilization rope

Stabilization rope

Included for 5,500mm boom length and longer

Fixed support and swinging support

Fixed support and swinging support

Fixed support rubber-cushioned, swinging support with additional counterweights, height adjustable

Technical data

Type	Lock width (mm)	Number of counter weights	Pendulum support
EH 25L	2500		optional
EH 30L	3000	2	optional
EH 35L	3500	2	optional
EH 40L	4000	2	required
EH 45L	4500	4	required
EH 50L	5000	6	required
EH 55L	5500	12	required
EH 60L	6000	14	required
EH 65L	6500	16	required
EH 70L	7000	18	required
EH 75L	7500	20	required

Manual barriers

815000000-SET
EH 25L RAL3002 Manual barrier

Description: Manual barrier EH 25L,RAL 3002 boom holder 1,300mm, effective boom length 2,500mm

Color

Barrier stand RAL 3002

More colors available in the configurator

Configure

MANUAL BARRIERS WITH COUNTERWEIGHTS

ELKA manual barriers are designed for a barrier width of up to 7,500 mm. The barrier stand is made of galvanized steel and is supplied in RAL 3002 (red) as standard. The counterweights ensure optimum weight compensation.

Variants
ELKA offers a selection of 11 barrier types with different boom lengths and matching accessories, such as locking, stabilization rope or swinging and fixed supports.

Contact us

Find out more about ELKA products and corresponding accessory components. Our competent team will be happy to assist you with the planning and implementation of projects.

Benefit from over 40 years of experience - approx. 100,000 barriers installed in over 80 countries worldwide. All products are manufactured in Germany and are subject to strict quality controls.

We look forward to your inquiry.

Barrier stand

- made of galvanized steel

- Standard RAL 3002 (red)

Default locking

- via catch-bolt

Counterweights

- for optimum weight compensation

- for easy operation

Barrier boom

- made of powder-coated aluminum

- Standard RAL 9010 (white)

- with red, reflective signal stripes

- Rubber-padded lower edge of boom

ACCESSORIES

Locking device on the barrier stand

Locking device on the barrier stand

Locking with profile cylinder lock or fire emergency release, with or without forced closure

Locking device at the fixed support

Locking device at the fixed support

Profile cylinder lock or fire emergency release incl. stainless steel bolt, on-site padlock

Stabilization rope

Stabilization rope

Included for 5,500mm boom length and longer

Fixed support and swinging support

Fixed support and swinging support

Fixed support rubber-cushioned, swinging support with additional counterweights, height adjustable

Technical data

Type	Lock width (mm)	Number of counter weights	Pendulum support
EH 25L	2500		optional
EH 30L	3000	2	optional
EH 35L	3500	2	optional
EH 40L	4000	2	required
EH 45L	4500	4	required
EH 50L	5000	6	required
EH 55L	5500	12	required
EH 60L	6000	14	required
EH 65L	6500	16	required
EH 70L	7000	18	required
EH 75L	7500	20	required

Recommended components

Locking device 1, mounted at the barrier stand

Category: Accessories
Product name: Locking device 1, mounted at the barrier stand

Mounted at barrier stand
With profile cylinder

Locking device 2, mounted at the barrier stand

Category: Accessories
Product name: Locking device 2, mounted at the barrier stand

Mounted at barrier stand
With profile cylinder and forced closure

Locking device 3, mounted at the barrier stand

Category: Accessories
Product name: Locking device 3, mounted at the barrier stand

Mounted at barrier stand
With profile cylinder and fire emergency release

Locking device 4, mounted at the barrier stand

Category: Accessories
Product name: Locking device 4, mounted at the barrier stand

Mounted at the barrier stand
With profile cylinder and forced closure
With fire emergency release

Swinging support incl. spring

Category: Accessories
Product name: Swinging support incl. spring

Expansion set swinging support, incl. counter weights

Category: Accessories
Product name: Expansion set swinging support, incl. counter weights

Optional components

Category: Accessories
Product name: Fixed support

Made of aluminium
Powder-coated, RAL 9010
Height adjustable

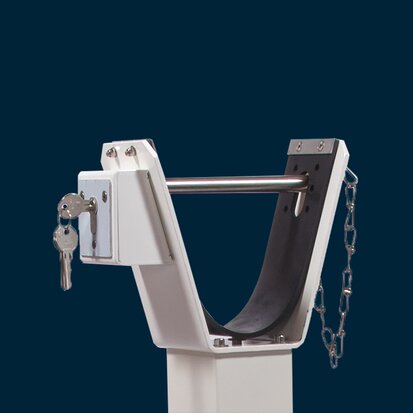

Additional cylinder lock

Category: Accessories
Product name: Additional cylinder lock

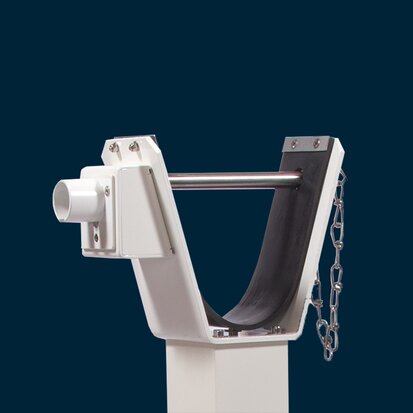

Lock with triangular fire emergency release DIN 3223

Category: Accessories
Product name: Lock with triangular fire emergency release DIN 3223

Bolt at fixed support, installed, for padlock - on site

Category: Accessories
Product name: Bolt at fixed support, installed, for padlock - on site

Spare parts
